Description
Function | Voltage | Current | Power |
Daytime Running Lamp | 24V | 300mA | 7.5W |
28V | 265mA | 7.5W | |
Position Lamp | 24V | 38mA | 1.0W |
28V | 36mA | 1.0W | |
Indicator Lamp | 24V | 160mA | 4.0W |
28V | 140mA | 4.0W |
The 131 is a combined Daytime Running Lamp, Front Position Lamp and a Category 1 Front Indicator Lamp.

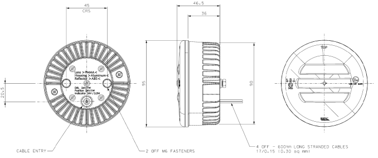

The lamp has a 95mm front lens and a 90mm diameter rear housing.
The Daytime Running Lamp and Front Position Lamp use the same 5, high power White LEDs, running at different currents. If power is applied to both the Daytime Running Lamp and the Front Position Lamp at the same time, the circuit defaults to a Daytime Running Lamp.
Function | Voltage | Current | Power |
Daytime Running Lamp | 24V | 300mA | 7.5W |
28V | 265mA | 7.5W | |
Position Lamp | 24V | 38mA | 1.0W |
28V | 36mA | 1.0W | |
Indicator Lamp | 24V | 160mA | 4.0W |
28V | 140mA | 4.0W |
