Description
Function / Homologation

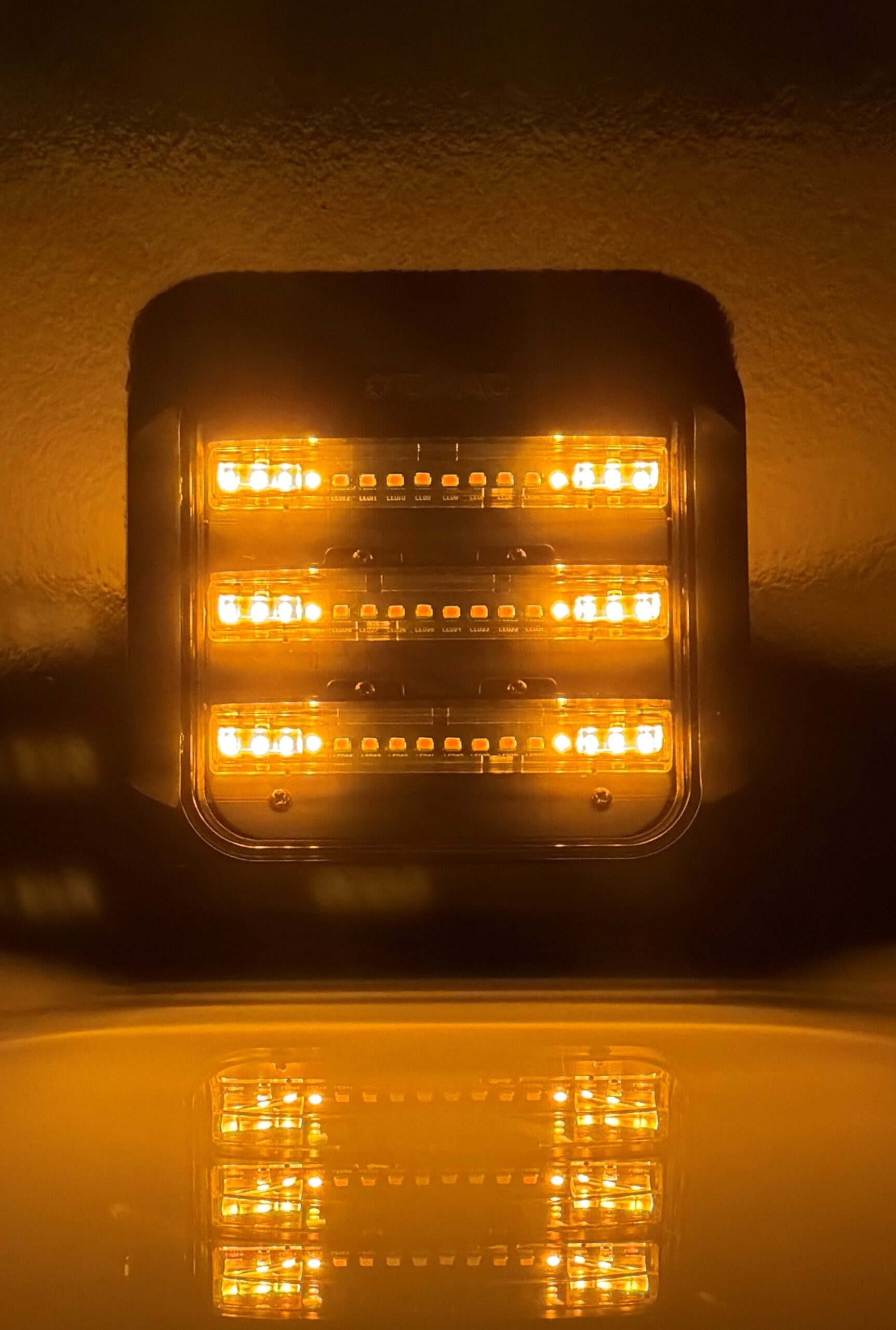

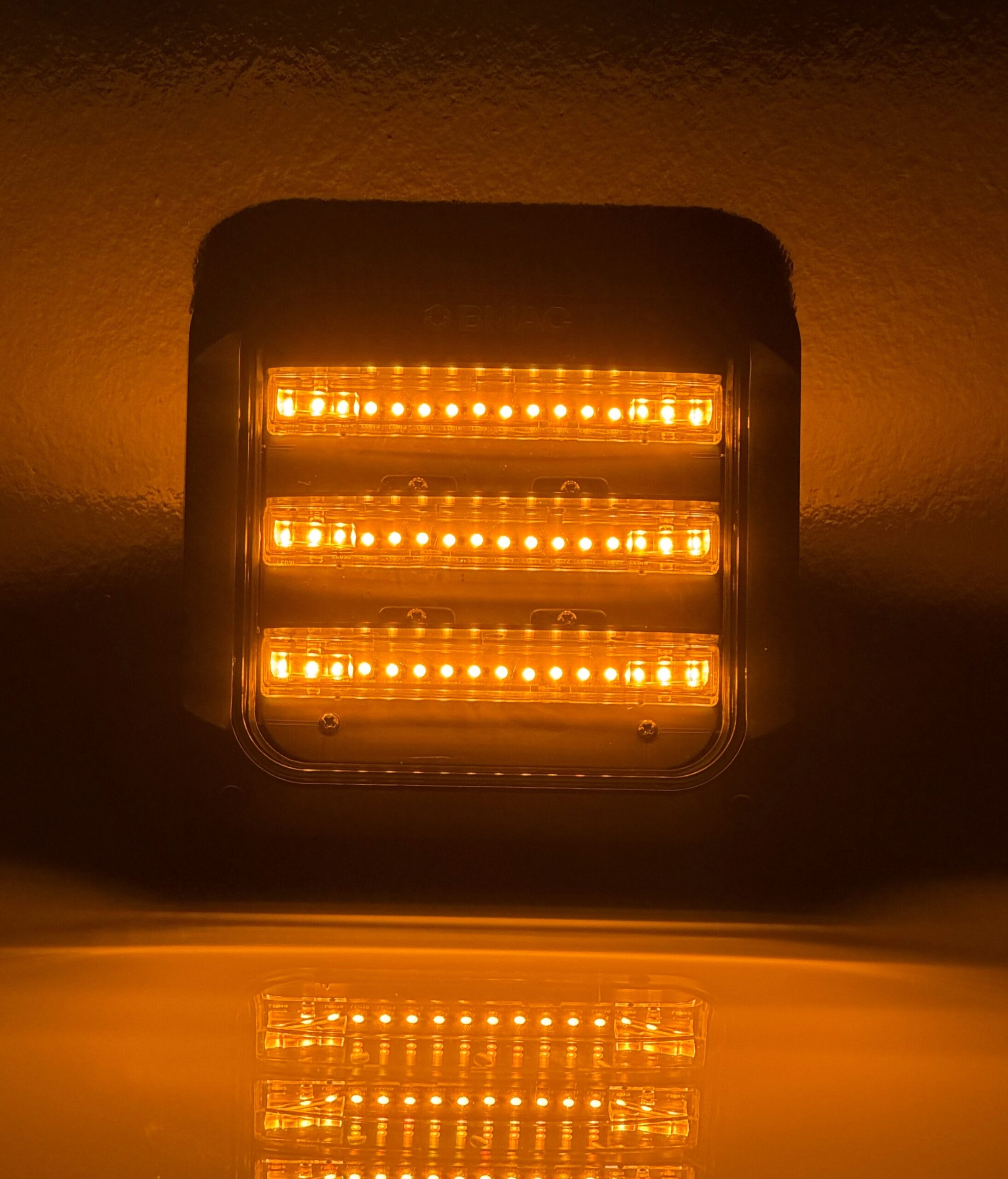

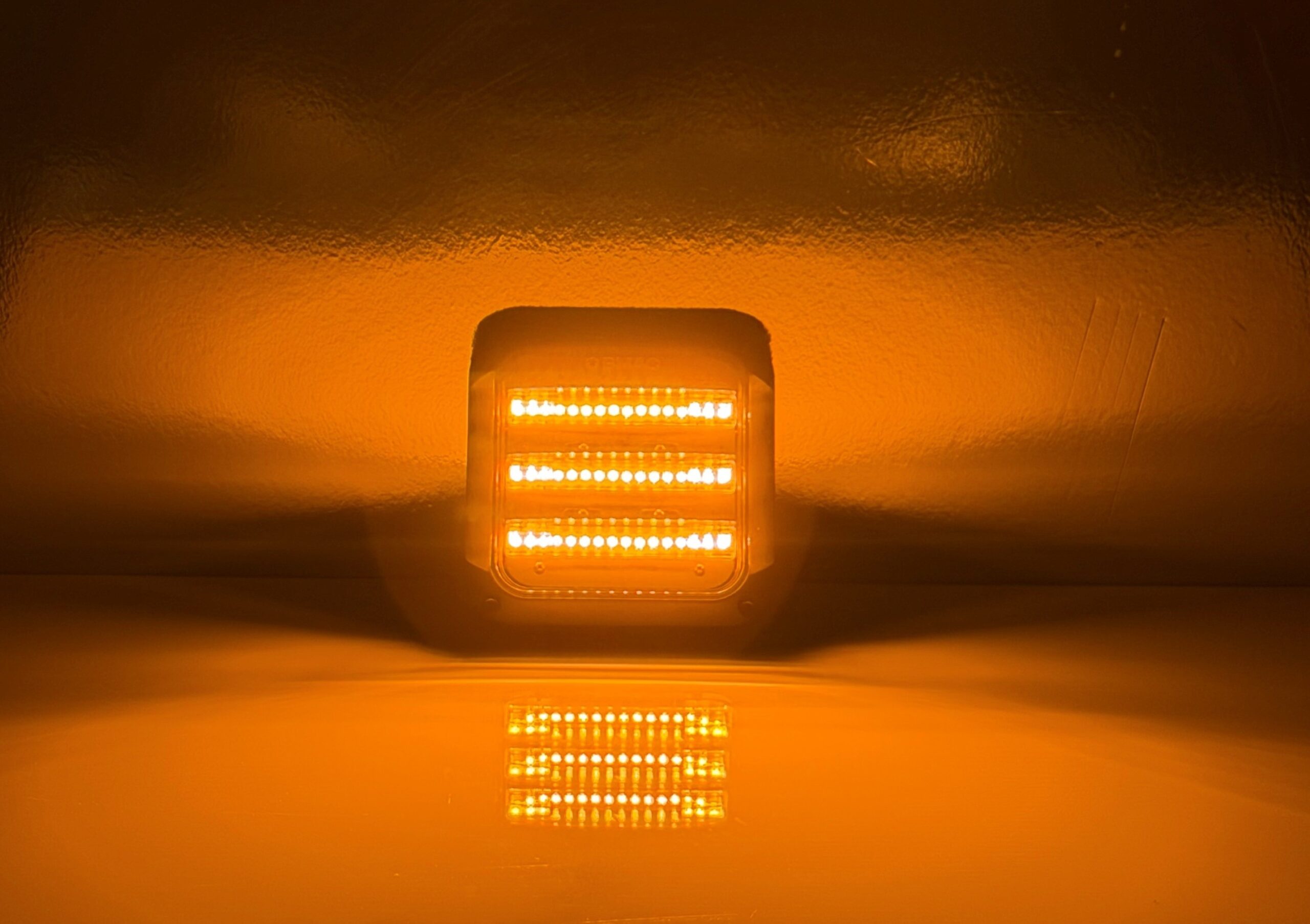

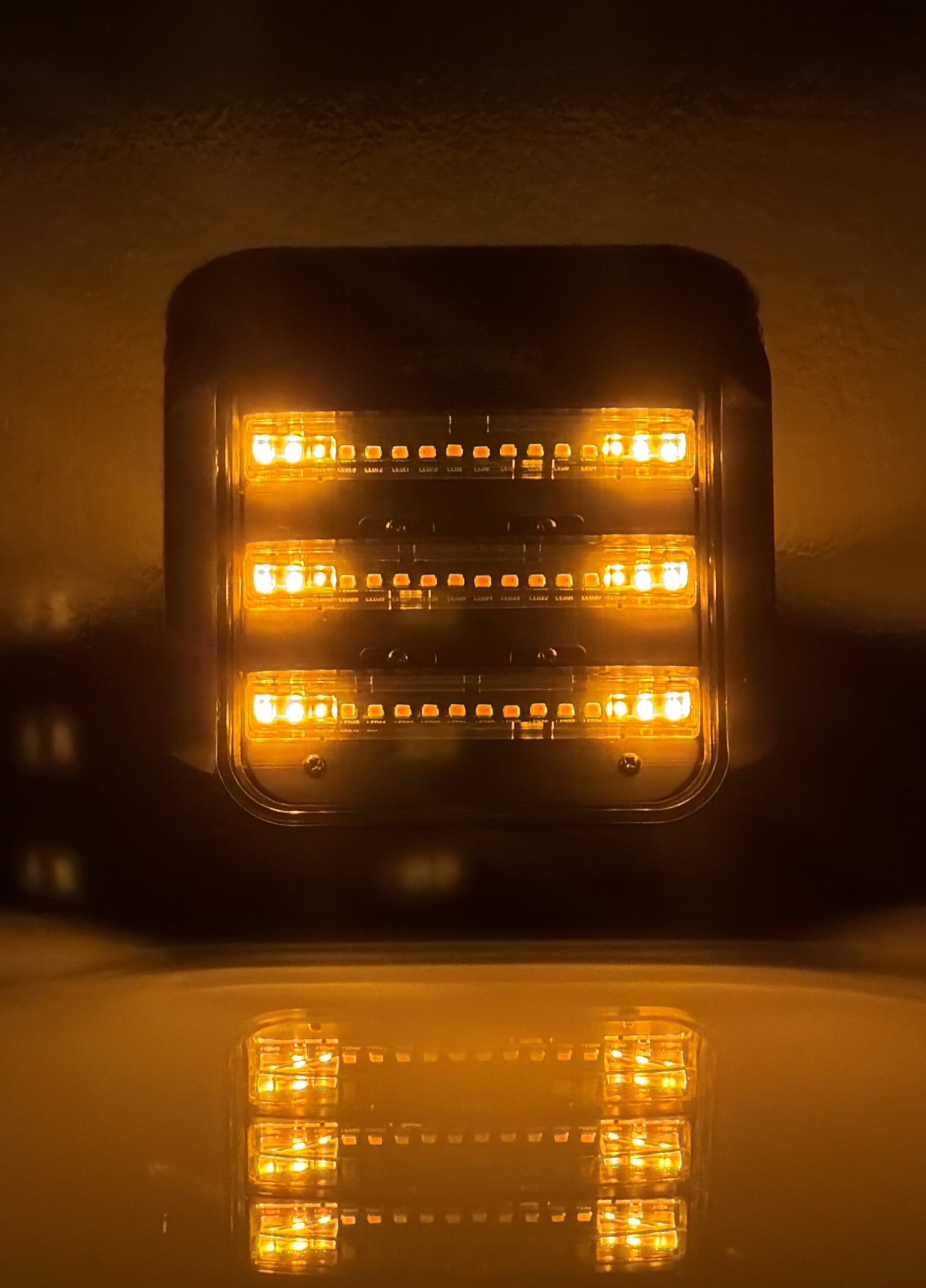

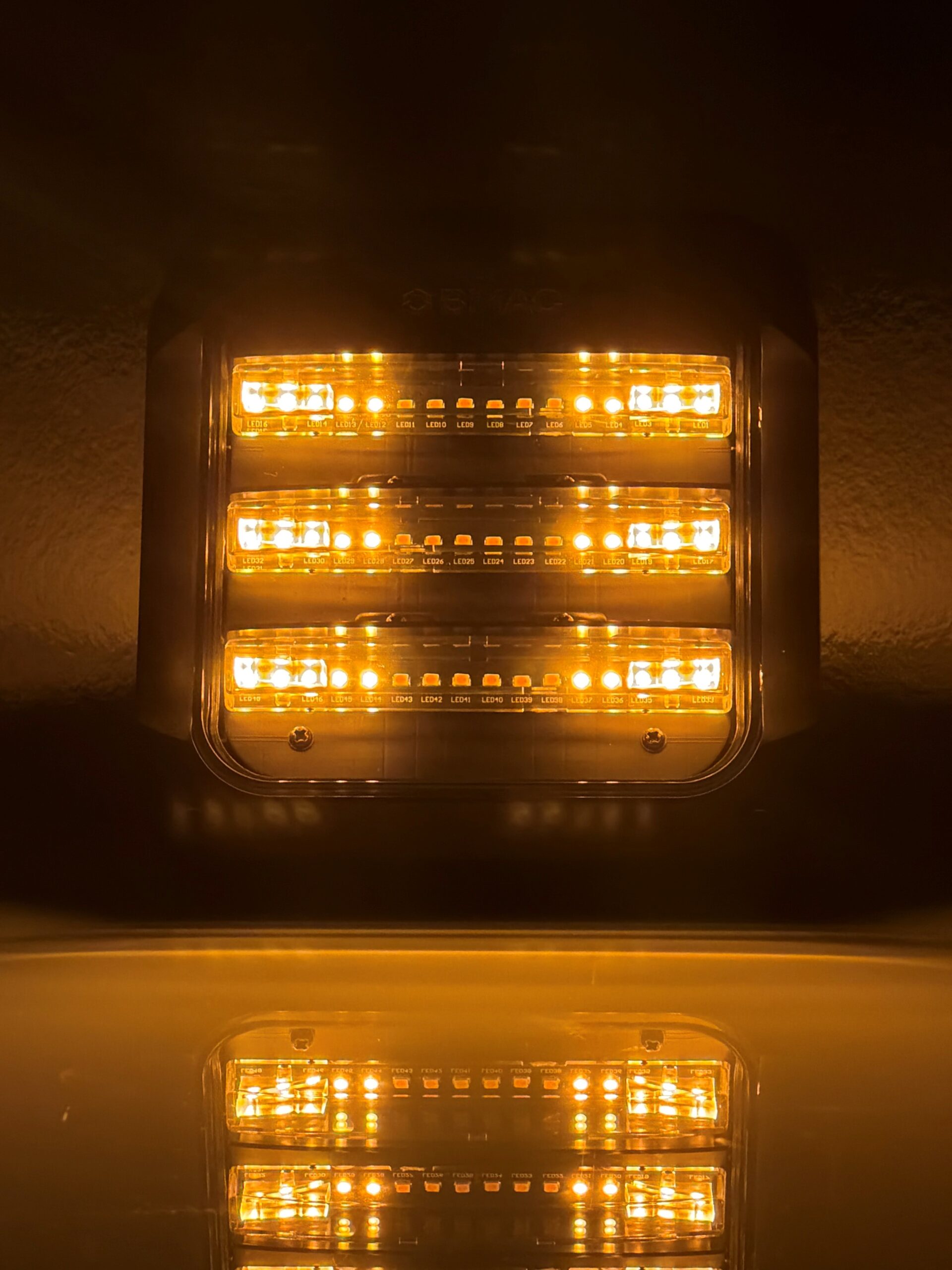

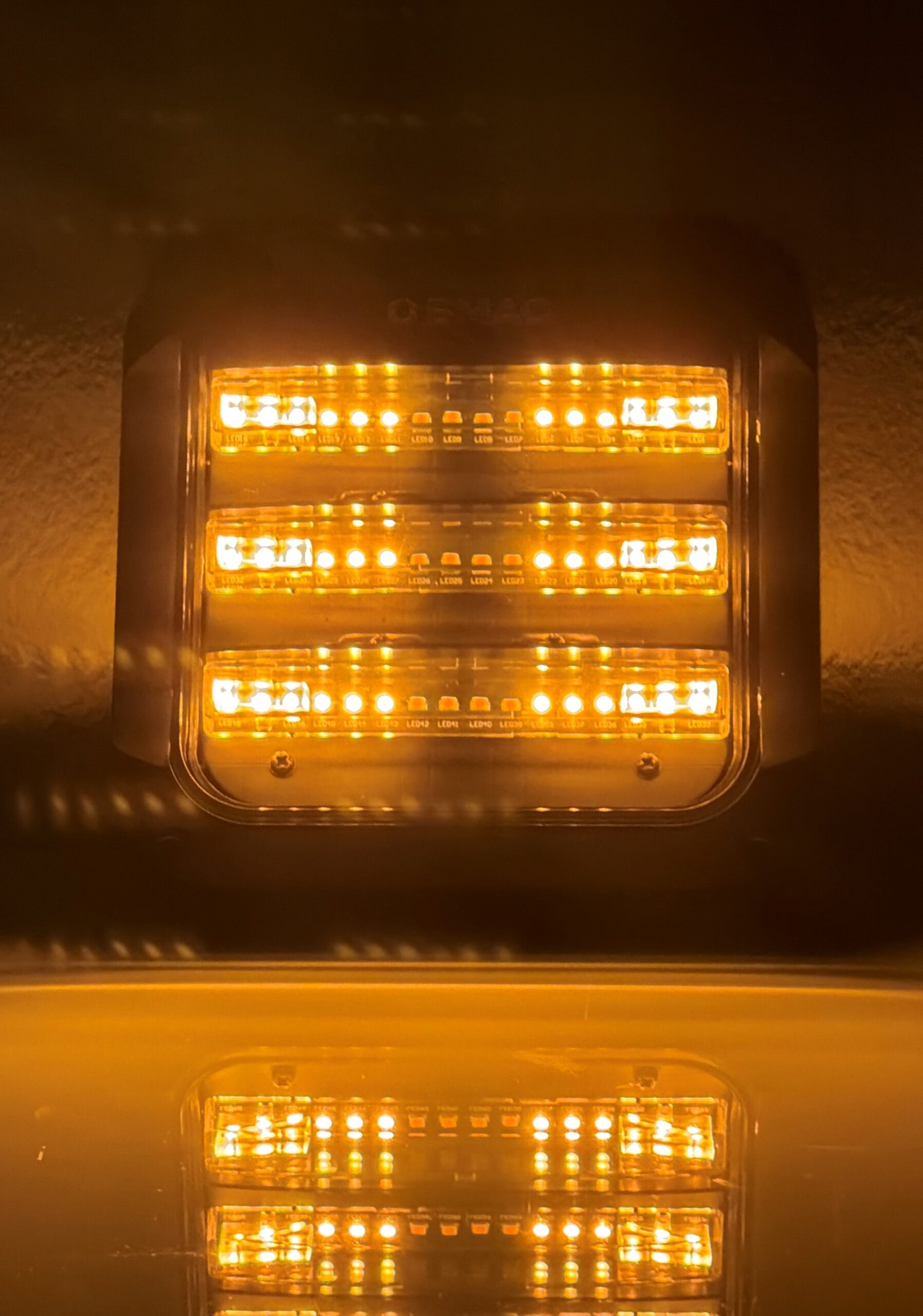

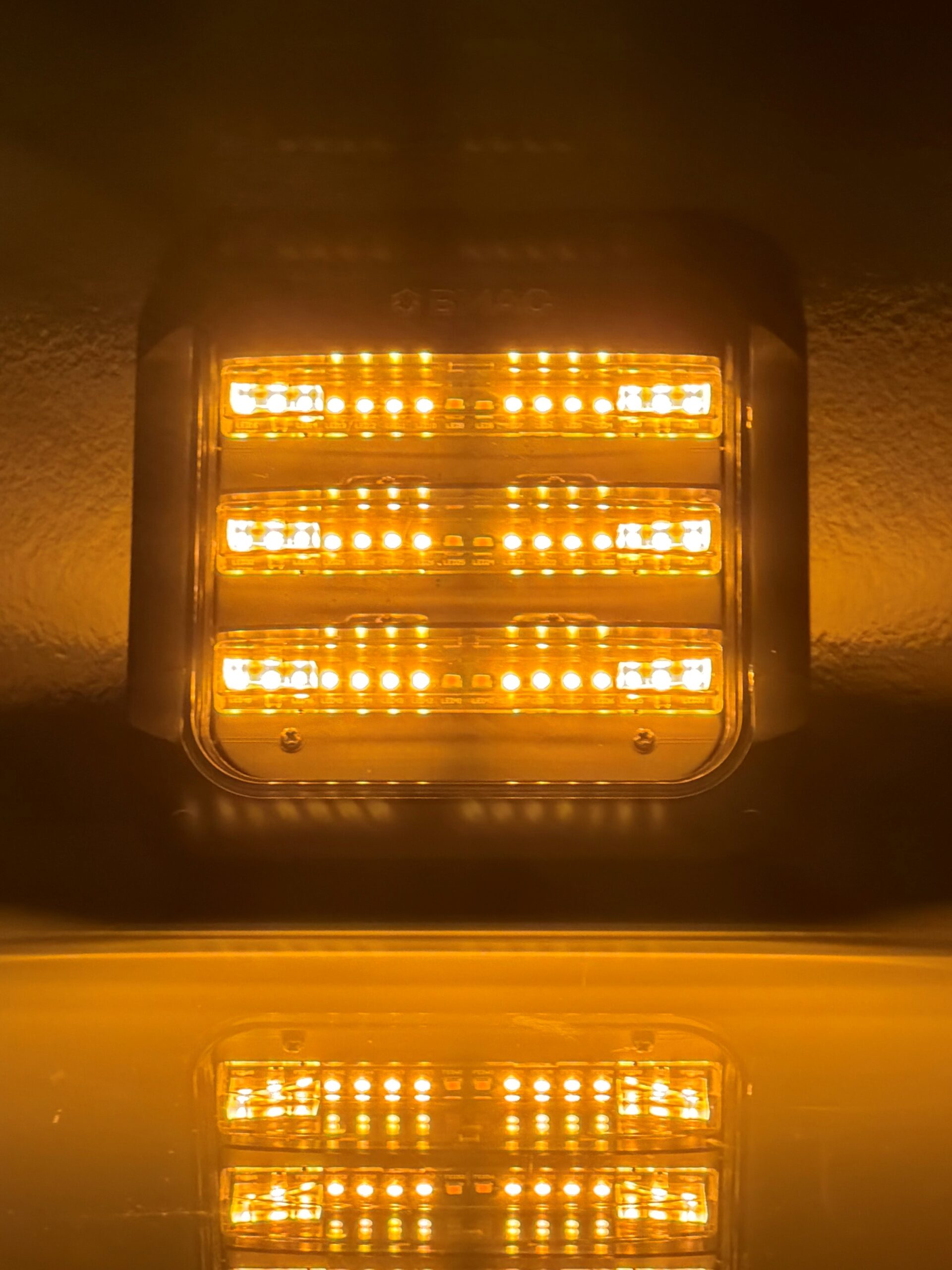

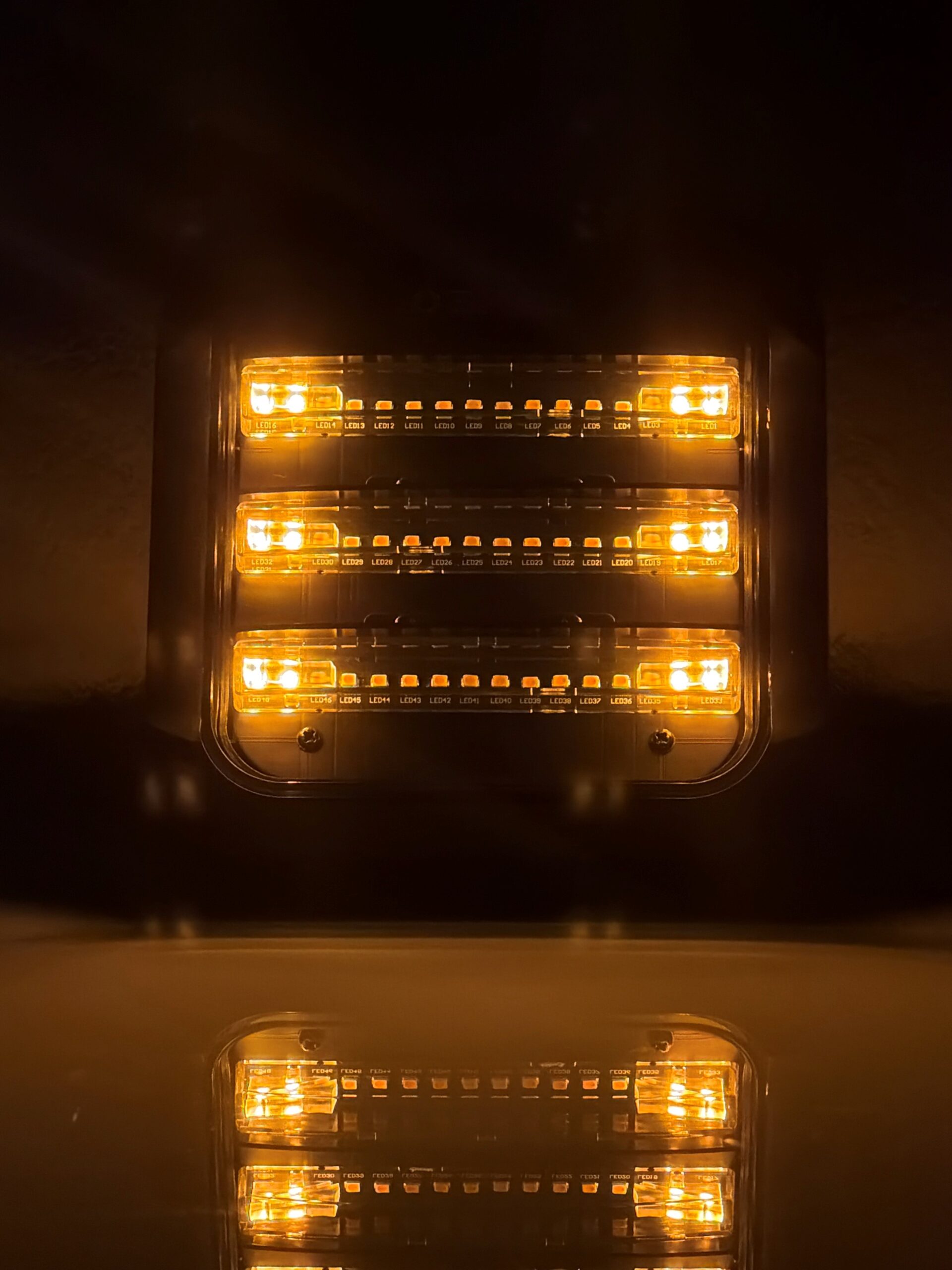

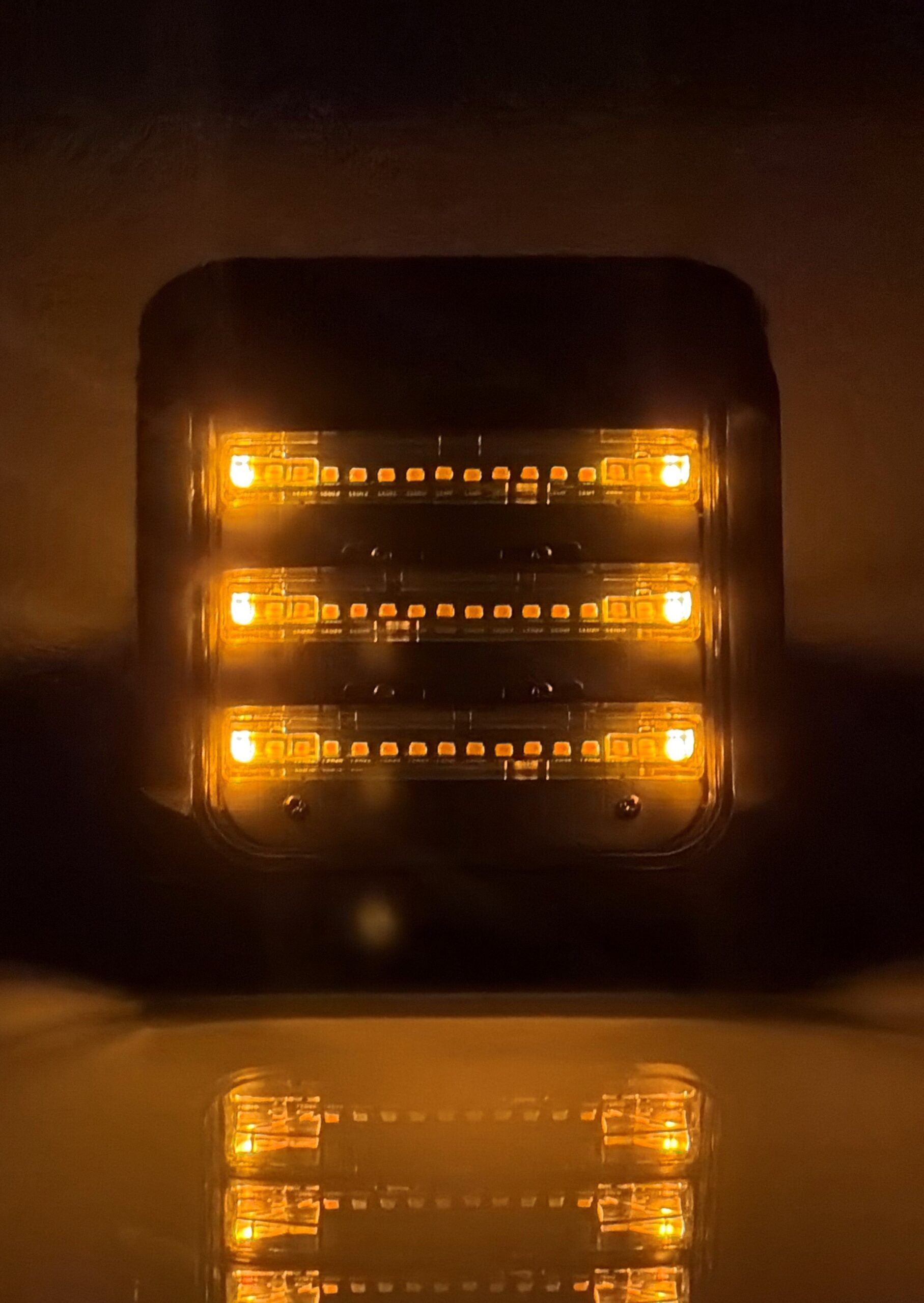

| Function | Amber Bodyside Indicator (3 LED rows), On/Off Mode Flash Mode Door Opening Mode (inside-to-out illumination) Door Closing Mode (outside-to-in illumination) (At any given time, only one mode can be active & applies to all LED rows) |
| Homologation | ISO 16750-5 (Chemical Loads) EN 50155:2021 (Environmental Reliability – Thermal Loads) EN 50121-3-2:2016+A1:2019 (EMC) EN 50155:2021 (Mechanical Design & Power of Electronic Equipment) |
Optical, Electrical & Operational Features

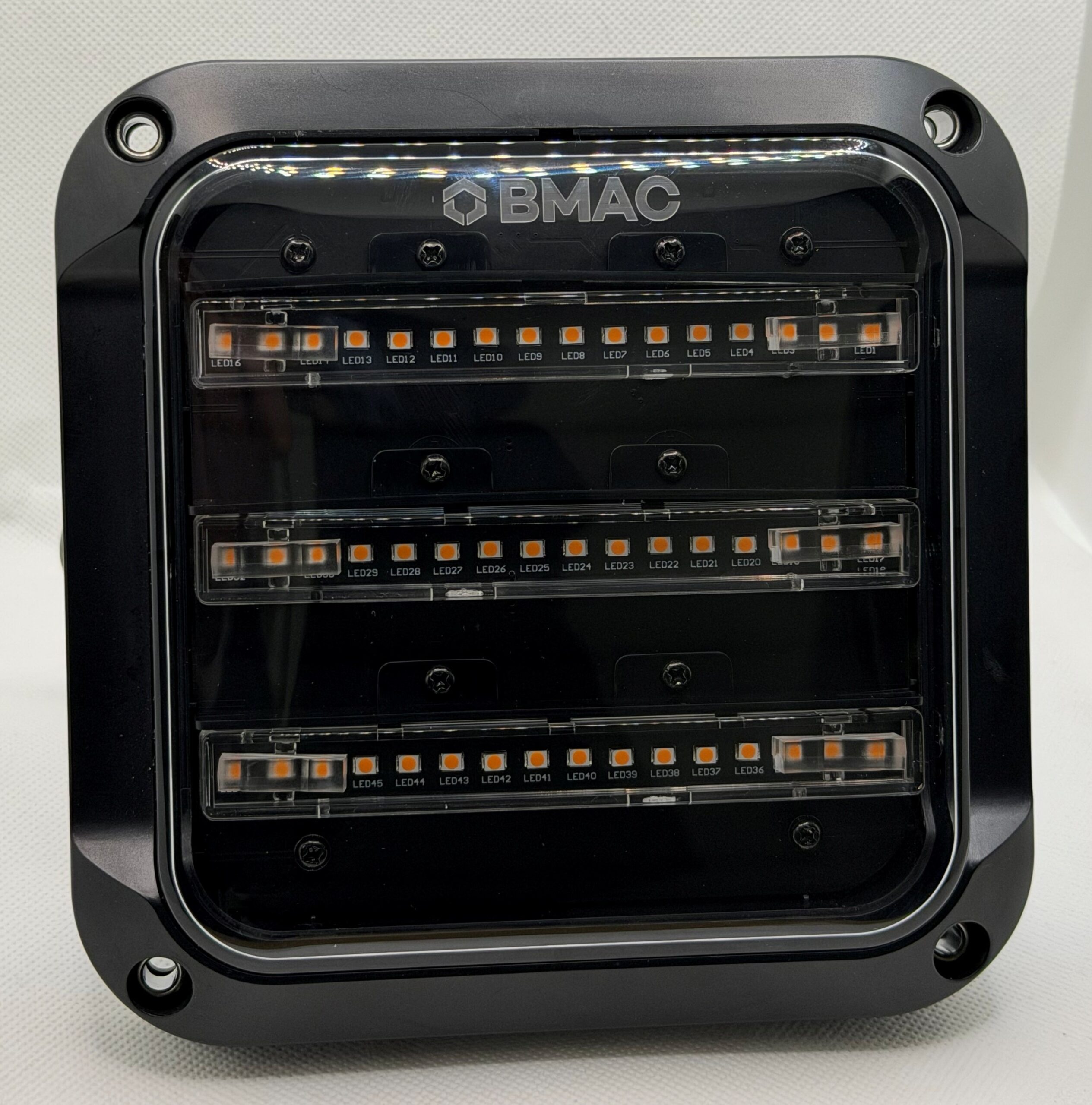

| LED Info | 15 LEDs per row |
| Emitting Colour | Amber |
| Candela Level | 24V – 154Cd / 110V – 146Cd |
| Lux Level | 24V – 154Lux / 110V – 146Lux |
| Voltage | 24V or 110V |
| Energy Consumption | On/Off Mode: 24V – 6.34W / 110V – 7.7W Flash Mode: 24V – 6.34W / 110V – 7.7W Door Opening Mode: 24V – 6.34W / 110V – 7.7W Door Closing Mode: 24V – 6.34W / 110V – 7.7W |
| Current Draw | On/Off Mode: 24V – 264mA / 110V – 70mA Flash Mode: 24V – 264mA / 110V – 70mA Door Opening Mode: 24V – 264mA / 110V – 70mA Door Closing Mode: 24V – 264mA / 110V – 70mA |
| Operating Temperature | -40⁰C to +55⁰C |
| Operating Humidity | 0 to 95% relative humidity |
Mechanical Features
| Housing Material | ABS + Polycarbonate, Black |
| Lens Material | Teijin Polycarbonate L1225Z 100, Clear, Automotive Grade Hardened |
| Weight | Circa 524.5g |

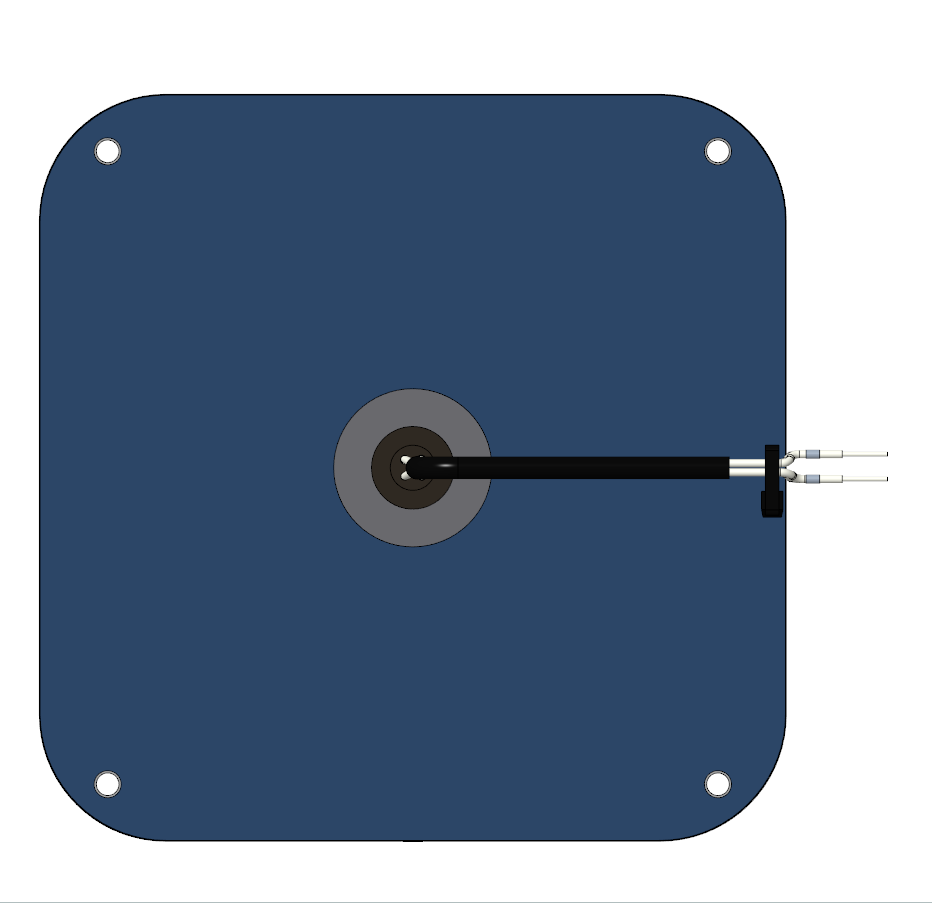

| Mounting Arrangement | 4x 5mm DIA Fixing Holes (y-axis: 140mm CRS / x-axis: 135mm CRS) |
| IP Rating | IP66 (Product) / IP54 (Rear of mounted unit) |
