Description
Function / Homologation
| Function | Full Beam Headlight Dimmed Beam Headlight |

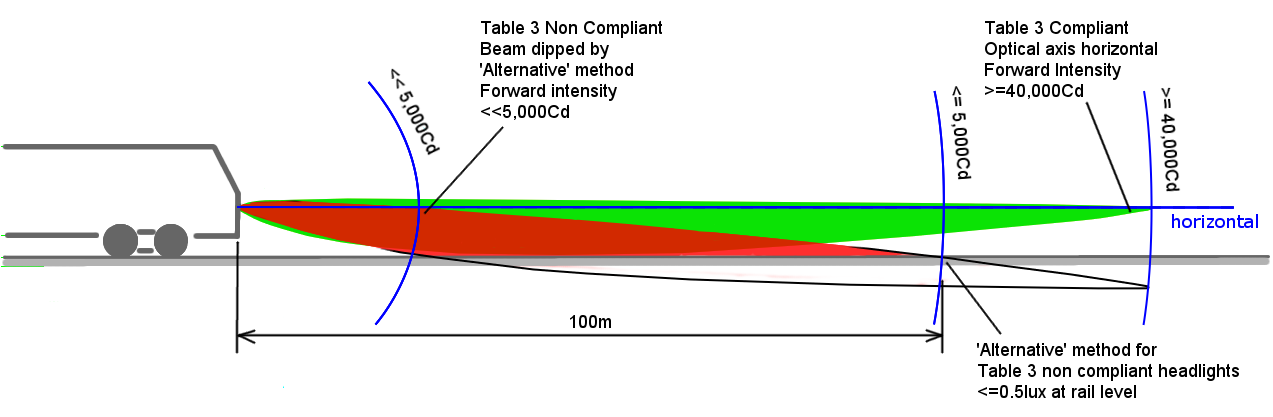

| Homologation | Loc & Pas TSI 1302/2014/EU EN 15153-1:2020 (Table 3) EN 45545-2 EN 50121-3-2:2016 |
Optical, Electrical & Operational Features

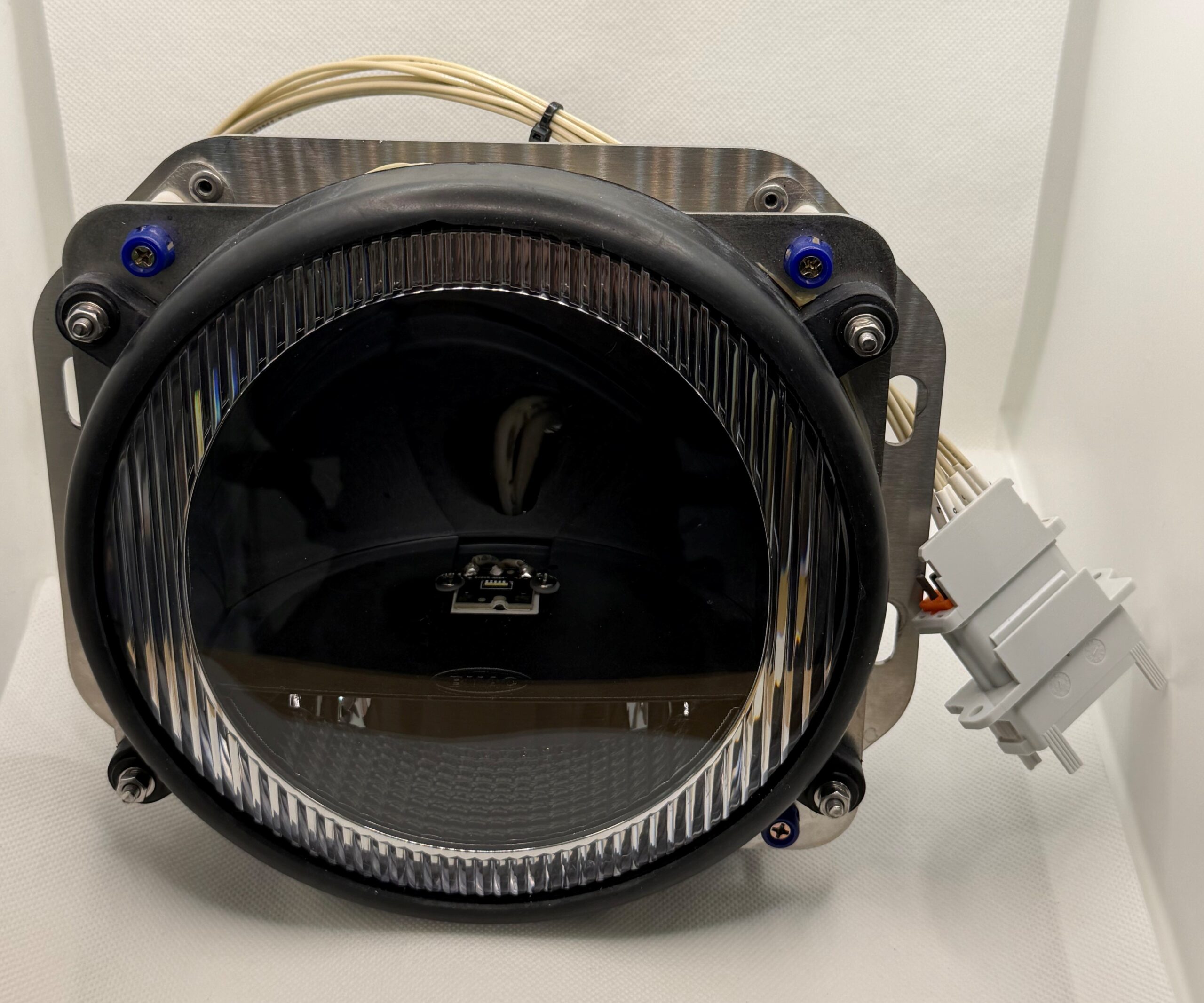

| LED Info | The upper LED is specifically designed for headlight optics. The light emitting surface is 1mm by 5mm long. The long thin shape enhances the cut off performance above the horizon and horizontal beam spread. The lower LED is a general purpose device that provides additional light into the less critically focused parts of the overall beam pattern. |
| Emitting Colour | White |
| Candela Level | Full Beam: 40,000Cd to 70,000Cd Dimmed Beam: 12,000Cd to 16,000Cd |
| Voltage | Continuous voltage range 16.8V to 137.5V |
| Energy Consumption | Full Beam: 17W Dimmed Beam: 3.6W |
| Current Draw | Full Beam: 16.8V – 1,012mA / 137.5V – 124mA Dimmed Beam: 16.8V – 214mA / 137.5V – 26mA |
| Operating Temperatures | -40⁰C to +40⁰C |
Mechanical Features

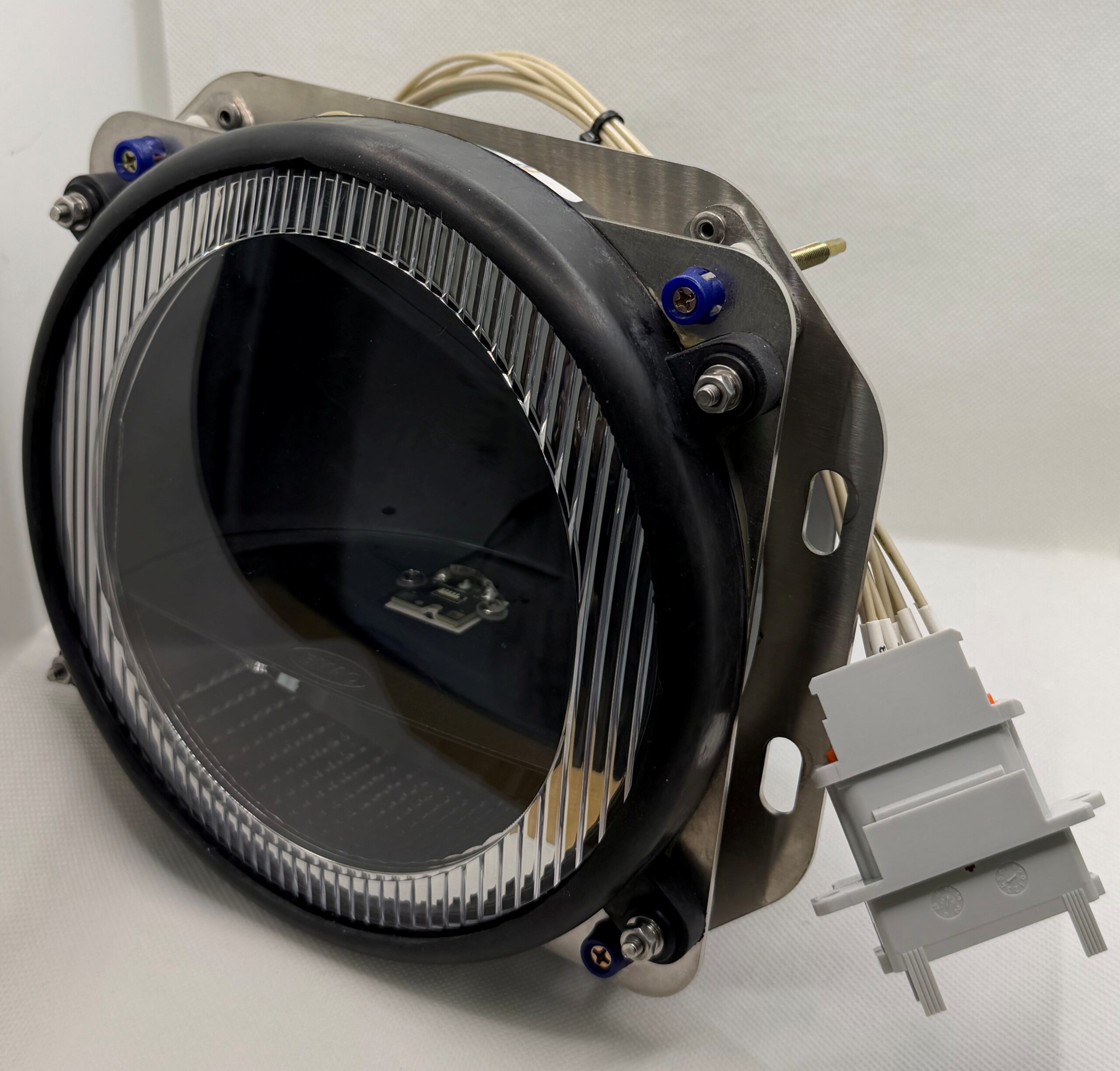

| Housing Material | PBT Front Housing, Aluminium Die Cast Rear Housing, Rubber Mounting Ring, Stainless Steel Mounting Plate |
| Lens Material | Hard Coated Polycarbonate |
| Weight | Circa 2.1Kg |

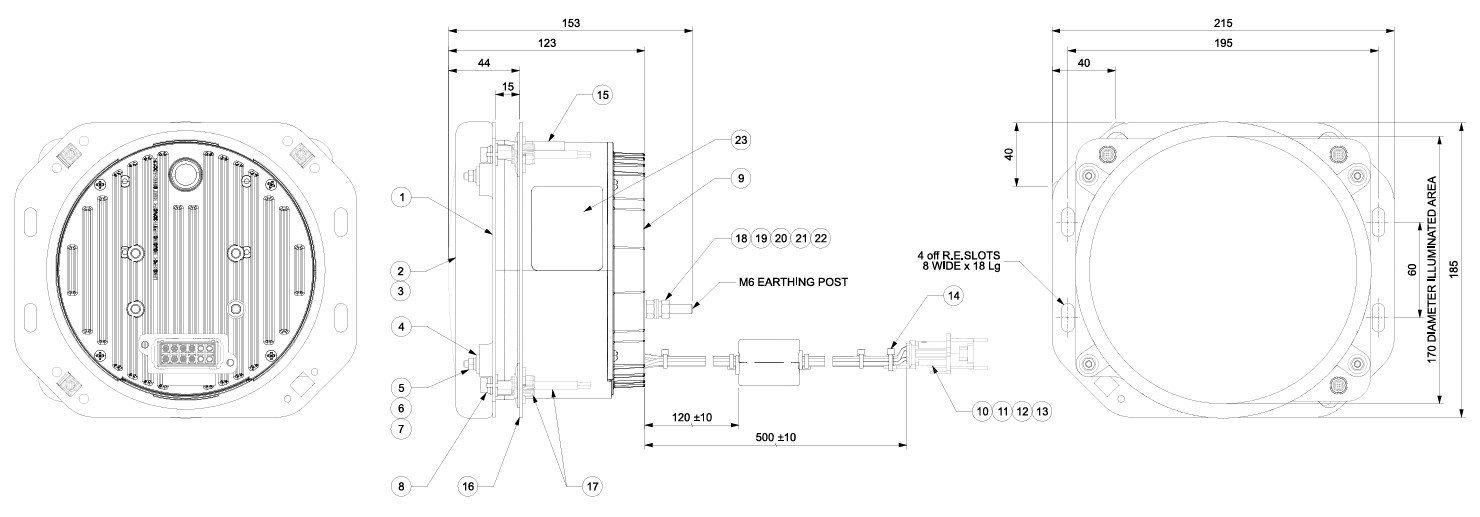

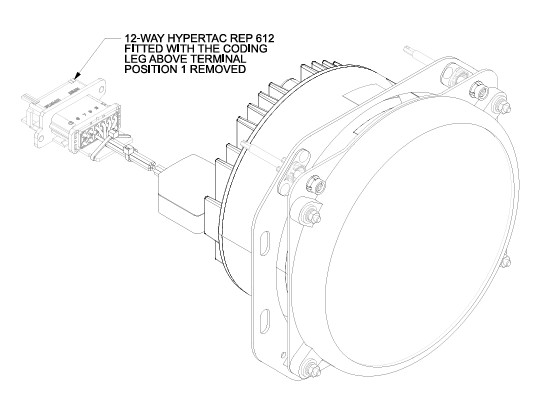

| Mounting Arrangement | Rubber Mounting Ring attached to a Mounting Plate. The plate is attached via 3 adjustment mechanisms secured in the Headlamp adjuster plate. The Headlamp adjuster plate has 2 off 8mm wide x 18mm long round end slots along both the left & right edges of the plate for fixing the assembly to the vehicle. |
| IP Rating | Front seal rating is IP66 Behind front flange the seal rating is IP54 |
